Archive | Framebuilding supplies

Components for your framebuilder to build your dream bike.

Back in Stock and New: Framebuilding Parts


Good news: The long-awaited Kaisei ‘TOEI Special’ fork blades are back in stock. Even better news: We worked with Kaisei to maximize their length, so there is a little extra for bikes with ultra-wide tires, or to cut off the bottom part that is hard to bend smoothly. The new blades are 430 mm long instead of 405 mm in the past.
Why do we love these fork blades? The fork is an integral part of the bike’s suspension: It absorbs hits that are too big for the tires to handle alone. The difference in comfort is really remarkable when you ride two bikes with the same tires, but different fork blades, back to back. As since the improved shock absorption reduces the suspension losses, a fork with a little give also makes you faster on all surfaces.

The ‘TOEI Special’ fork blades work perfectly with our ultra-strong and ultra-light Rene Herse fork crown.

We’ve added a third chainstay to our Kaisei tubing program: In addition to stays with 0.7 and 0.8 mm wall thicknesses, we now offer 1.0 mm stays. These are ideal for bikes that carry a heavy load, and for riders who prefer a stiffer feel to the drivetrain. We offer them both straight and custom-bend to clear wide tires (above).


The Rene Herse bottom bracket shells are designed to fit the curved stays, with a socket angle that is a bit wider than standard. Available both for standard and OS down tubes.

Another addition to our framebuilding program: Hahn Rossman has redesigned our taillight mount. It’s now much easier to braze, and your builder can shorten it if you prefer the taillight to be closer to the seat tube. (The new braze-on does require a larger hole in the seat tube, but we’ve found that this doesn’t cause any problems.)

We’ve sourced and designed our framebuilding program for bikes that traverse entire mountain ranges in one go – because your bike should not limit the adventures that you can imagine.
Click here for more information about the Rene Herse framebuilding program.
Photo credit: Nicola Joly (Photo 1).

Continue Reading

Myth 10: Stiffer Forks Steer Better


To celebrate Bicycle Quarterly‘s 15th anniversary, we are looking at myths in cycling: things we used to believe, but which we’ve since found out not to be true. This week, we have a ‘double feature’ that looks at fork blades. In the first post, we looked at whether they flex enough to improve comfort. Here we examine the belief that stiffer fork blades make the bike steer better. Continue Reading →

Continue Reading

Tubesets for Our Bikes: Oversized

In addition to individual Kaisei frame tubes, Rene Herse Cycles offers three complete tubesets: Superlight, ‘Mule’ and Oversize. Each tubeset is based on bikes that we have found to work extremely well. The Superlight set is the lightest steel tubeset available today, great for riders who prefer a flexible frame. The ‘Mule’ set uses an oversized down tube for a little firmer feel. It’s also better for carrying a front camping load.

The Oversize tubeset is made from thinwall oversized tubing to offer the ultimate performance for those who prefer a somewhat stiffer frame. Riders with a heavier build often have a higher power output, and they can benefit from a stiffer frame.

The oversize top tube with ultra-thin 0.7-0.4-0.7 mm walls adds stiffness to the frame without detracting from its lively feel. Kaisei keeps the ‘belly’ of the down tube to a slightly more conservative 0.5 mm, instead of the ultra-thin 0.4 mm, because the large-diameter tubes dent too easily when they are too thin. (Down tubes are larger than top tubes, making them less convex and easier to dent.) Since our tubes are available with longer ‘bellies,’ they are still lighter than other tubes with thinner-wall, but shorter, bellies.

How does a bike made with the Oversize tubeset ride? I’ve ridden a few bikes built around this tubeset, and they feel subtly different from mine. They still ‘plane’ – by most standards, this tubeset is very light and still has flex in the right places – but they do have a more planted feel. For me, they work best with a higher power output and a slightly lower cadence.

Interestingly, descending feels the same on all our bikes, regardless of the tubes used in the frame. We’ve found that frame stiffness makes little difference in how a bike handles – which makes sense when you consider that there are no significant side loads on a frame when you aren’t pedaling.

The Oversize tubeset is a great choice if you want or need a little more stiffness in your frame than our other Kaisei tubesets offer. That makes it perfect for tall, heavy and/or strong riders. This is also the tubeset I’d chose for a camping bike that carries rear panniers in addition to a front load. Above you see both my ‘Mule’ and Hahn’s Oversize bike on top of Shirabiso Pass in Japan during the Nihon Alps 600 km Super Randonnée – each bike perfect for its rider during this challenging ride.

The final tubing selection for your bike is something to discuss with your frame builder, who will design your frame based your build, riding style, preference, and intended use of the bike. All our Kaisei tubesets offer excellent performance that comes with a carefully designed balance of frame stiffness. As a Rene Herse exclusive, we offer the Kaisei tubesets in two lengths, so you can get tubes optimized for your frame size. All tubes we sell feature Kaisei’s unmatched quality and experience that comes from supplying the tubes for the frames of thousands of professional Keirin racers. We import these tubes because we feel that there are no better tubes anywhere.

Further reading:

Continue Reading

Myth 2: Titanium is Lighter than Steel


In part 2 of our series ’12 Myths in Cycling,’ we’ll look at why titanium isn’t always lighter than steel. I can hear you saying, “What? Everybody knows that titanium has half the density of steel.”

That much is true: The same part made from titanium will weigh half as much as the equivalent from steel. But titanium has only half the stiffness, so the part will be half as stiff. To make the parts of the same stiffness, you need to use twice as much material with titanium, and the weight will be equal. The same applies to aluminum, which is one-third as heavy and one-third as stiff. (These numbers are for the high-strength alloys; raw aluminum, titanium and iron are not strong enough to be used for cycling applications.) Continue Reading →

Continue Reading

Tubesets for our Bikes: Mule


In addition to individual Kaisei tubes, Rene Herse Cycles offers three tubesets: Superlight, ‘Mule’ and Oversize. Each tubeset is based on bikes that we have found to work extremely well. Today we’ll look at the Mule. Named after my most versatile bike, it features an unusual configuration: an oversized down tube (31.8 mm diameter) for added stiffness, and a standard-diameter top tube (25.4 mm) for the flex characteristics that give our favorite bikes their lively feel.

Originally, I built the Mule for a trip to Japan as a Rinko bike that could handle both fast randonneur rides and loaded tours. The bike was intended as a test-bed for components and parts, and it was built in a rush, so we nicknamed it ‘The Mule,’ a name used by Italian race car builders for the bare chassis that they road-tested with rudimentary bodies to finalize suspension and engines, before the car went to the carrozzeria to have its real body added.


What makes the Mule different from most bikes is that it uses an oversized down tube (31.8 mm diameter), but a standard-diameter top tube (25.4 mm). While unusual, this configuration is not without precedent: René Herse built some camping bikes, as well as some tall frames, with similar configurations. Japanese Keirin builders also build bikes with this combination of tubing diameters. And when you look at modern high-performance carbon bikes, they usually have very slender top tubes and relatively massive down tubes.

This is very different from some bikes that use an oversized top tube and a standard down tube, making both tubes the same diameter (28.6 mm). With their stiffer top tubes, these bikes don’t perform well for the BQ Team and many other riders. They also tend to shimmy, probably because both tubes have very similar resonant frequencies.


Going with a smaller top tube and larger down tube was an experiment. Would tweaking the balance of frame stiffness supercharge the Mule’s performance beyond anything we’d experienced thus far? The Mule has performed very well on many rides, but it isn’t a magic bullet: Careful back-to-back testing has shown that, for me, the Superlight tubeset gives the bike slightly better performance.


The Mule’s oversized down tube adds stiffness, yet the standard-diameter top tube keeps the flex characteristics that make for a lively feel. That makes the Mule perfect for carrying heavy front panniers. (I avoid loading up the rear, as that requires a much stiffer frame and also makes it difficult to rise out of the saddle.)


The Mule isn’t just for loaded touring. Some riders who’ve ridden the Mule really like the stiffer, more planted feel compared to the Superlight spec. The Mule doesn’t shimmy as easily – even with a Chris King headset, which is prone to shimmy, the Mule is well-behaved under most conditions.


My Mule is built with a down tube that has just 0.35 mm-thick walls. With the large diameter and super-thin walls, I have found that this tube is very easy to dent. So for the Kaisei tubes, we chose 0.5 mm walls for the unbutted center sections. We offer the tubes with longer thinwall ‘bellies,’ so the overall flex characteristics are very similar.

Even though I prefer the Superlight tubing for all-out performance, I’ve ridden the Mule in a Japanese 600 km Super Randonnée with 11,000 m (36,000 ft) of climbing, and the bike felt great throughout the ride. It was only during the back-to-back testing that I realized its (slight) performance deficit. Would I do the 765-mile Paris-Brest-Paris on the Mule, if my Superlight bike wasn’t available for some reason? Absolutely!


If I could have only one bike, I probably would choose the tubing spec of the Mule. How about you? Obviously, if you plan to go touring, the oversized down tube is a great choice. If you are concerned that the Superlight tubeset may make your frame feel too flexible, especially if you are a heavier or stronger rider, I would recommend the Mule’s tubeset as well. And if you are concerned about shimmy, the very different resonant frequencies of the top and down tubes apparently keep it from developing in most cases. Compared to the more specialized bikes in my stable, the Mule is a great all-rounder.

The final tubing selection for your bike is something to discuss with your frame builder, who will design your frame based your build, riding style, preference, and intended use of the bike. All our Kaisei tubesets offer excellent performance that comes with a carefully designed balance of frame stiffness. As a Rene Herse exclusive, we offer the Kaisei tubesets in two lengths, so you can get tubes optimized for your frame size. All tubes we sell feature Kaisei’s unmatched quality and experience that comes from supplying the tubes for the frames of thousands of professional Keirin racers. We import these tubes because we feel that there are no better tubes anywhere.
Further Reading:

Continue Reading

Tubesets for Our Bikes: Superlight


In addition to individual Kaisei frame tubes, Rene Herse Cycles offers three tubesets. Each tubeset is based on bikes that we have found to work extremely well. These bikes have distinct characters that I’ll describe in a series of blog posts.

The Superlight tubeset is just that – the lightest, thinnest-wall tubeset you can buy today. In the unbutted center sections (“bellies”), the tube walls measure just 0.4 mm. At the butted ends, they go up to 0.7 mm for strength at the joints. We offer the Kaisei tubes in two lengths, with “bellies” optimized for short and tall frames.

What does a bike built from the Superlight tubeset feel like on the road?

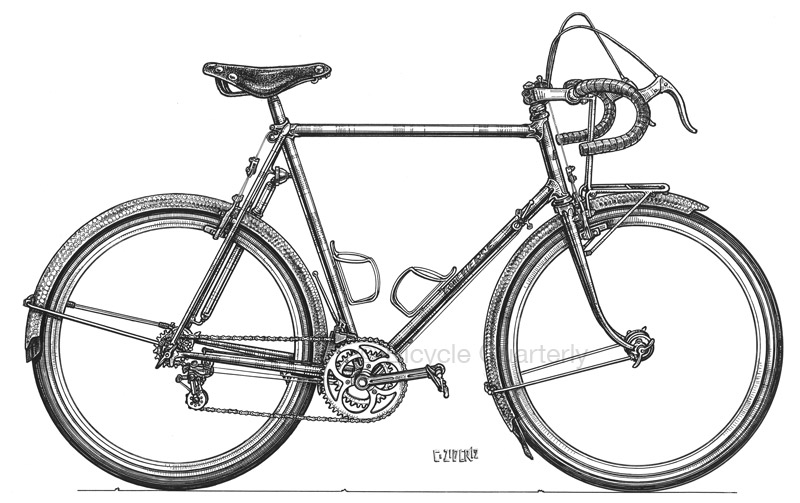

My René Herse (above) is made from tubes with these dimensions. It’s my favorite bike for spirited rides. It’s the bike that exemplifies ‘planing’ for me – a bike that gets in sync with my pedal strokes, and always seems to entice me to go faster. It’s the bike that I’ve ridden on some of my memorable rides, whether it’s ‘Charly Miller’ times in Paris-Brest-Paris (top photo) and in the Cascade 1200 brevet, or in the Raid Pyrénéen that goes non-stop from the Atlantic to the Mediterranean via 18 mountain passes (above).


In all these performances, the bike deserves a lot of credit. On long rides, it really helps to have a bike with just the right flex characteristics to synch with my pedal strokes. Pedaling becomes a subconscious routine. When we say that steel bikes can offer the same performance as modern racing bikes, it’s these bikes we are talking about.

The same characteristics make me pick the Herse for fast Saturday morning spins with the BQ Team. When we race each other up the Cascade foothills, this is the bike that I find easiest to pedal hard. It’s the fastest in these impromptu sprints because it lets me put out the most power. Compared to my other bikes, I am breathing harder at the top of the climbs, and I am more tired when I get home. And my smile is bigger, too.

The tubeset not only defines this bike’s performance, but also its feel. It always feels light, like a racehorse. Whether you like that or not depends on your taste in bikes. A very strong rider probably would find the superlight tubeset too flexible, but remember that Andy Hampsten won the 1988 Giro d’Italia on a bike made from tubes with the same dimensions. I was lucky enough to ride Hampsten’s bike once, so I can report that it feels very similar to my Herse.

While my Herse is equipped with some classic components, you could use ‘modern’ brake levers and derailleurs without changing the feel of the bike. With a different fork, you even could use disc brakes…


How about descending on a bike this ‘flexible’? Despite rumors to the contrary, it feels the same as other bikes. When you look at the physics, you realize that the bike is always balanced, no matter how hard you corner. Otherwise, it would fall over. There are no significant side loads that could flex the bike when you are coasting.

Our on-the-road experience has confirmed this: During our ground-breaking double-blind test of frame stiffness, none of us felt any differences between the bikes on the downhills – whereas on the uphills, both Mark and I were measurably faster on the two bikes with superlight tubesets.


What about the durability? You often hear the description ‘paper-thin’ for tubes this light, but when you pick up a raw tube, you realize that it’s actually quite sturdy. Most of all, the walls at the ends measure 0.7 mm – not much thinner than those of other tubes (0.8-0.9 mm). And since frames rarely break in their unbutted center sections, I am not worried about the longevity, either.

I’ve ridden my Herse for 6 years now, including the 360-mile Oregon Outback gravel race. After that ride (above), my rims had developed cracks (I use better ones now!), and my spare spokes had worn through the cloth tape I used to attach them to the fender stays, but the rest of the bike was no worse for wear.


Why not build all bikes from this tubing? First, there is the lightweight feel that some riders don’t enjoy. It really depends on your power, your riding style – these bikes work best with a light touch on the handlebars – and your preferences. Furthermore, with a tubeset this light, these bikes are more prone to shimmy. It hasn’t been an issue on my Herse, but that bike uses a needle bearing headset that dampens the steering slightly. Also, I wouldn’t recommend this tubeset on a bike that commonly carries a heavy load. The Herse is fine with a heavily loaded handlebar bag, but if I were to ride a lot with loaded front low-riders, I’d pick a stiffer down tube.


One last datapoint is that I am 181 cm tall (5’11”) and weigh 70 kg (154 lb). I ride a relatively large frame (58 cm seat tube, 57 cm top tube, c-c). Shorter tubes are inherently stiffer, so I feel that this tubeset makes even more sense for smaller frames. On the other hand, taller or significantly heavier riders may need a stiffer tubeset. Fortunately, we offer those as well.

The final tubing selection for your bike is something to discuss with your frame builder, who will design your frame based your build, riding style, preference, and intended use of the bike. All our Kaisei tubesets offer excellent performance that comes with a carefully designed balance of frame stiffness. As a Compass exclusive, we offer the Kaisei tubesets in two lengths, so you can get tubes optimized for your frame size. All tubes we sell feature Kaisei’s unmatched quality and experience that comes from supplying the tubes for the frames of thousands of professional Keirin racers. We import these tubes because we feel that there are no better tubes anywhere.
Further Reading:

Continue Reading

Kaisei Tubing


It’s no secret that we love steel bikes. Steel allows us to build the bikes we need for our adventures – bikes where every detail is optimized to the nth degree. You can imagine our concern when True Temper, one of the most important suppliers of steel tubing, decided to leave the bicycle market. Without steel tubes, especially the superlight ones that True Temper was specializing in, there wouldn’t be any more of the bikes we love.

What to do? We thought about who made the best steel tubing in the world today. There is no simple answer, but Kaisei in Japan was an obvious candidate. Kaisei is unique in that most of their tubes are used for professional racing bikes: More than 2000 Japanese Keirin riders race on steel bikes, and most are made from Kaisei tubing, which is known for its high quality.

Kaisei is an interesting company, because they are just a manufacturer, without any marketing. All they do is supply tubes to Japanese framebuilders. And since those builders work for professional racers, there is no need for fancy names and stickers. As a result, Kaisei uses Cromoly tubing. It’s the strongest and most reliable, and the thinwall tubes are heat-treated. I like that no-nonsense approach.

Kaisei tubes are rounder than most, and their walls are more uniform in their thickness. They match their spec exactly, unlike some other tubes we’ve measured. The heat treatment is uniform, and it’s designed to strengthen the tubes without making them brittle. This precision reduces the risk that a frame breaks due to defects in the tubing. For Keirin racers, this point is very important: They are not allowed to change bikes during a weekend of racing, and if their bike breaks, they are out of the races. And since they live off their prize money, this means they have no income, either.

In the past, Kaisei tubing was designed for smaller frames, since Japanese (racers and otherwise) tend to be shorter than the average westerners. The thinwall “bellies” of the tubes were relatively short, which meant that tall frames were heavier and stiffer than necessary. In addition to offering these “short” tubes, we worked with Kaisei to make “long” tubes with longer thinwall “bellies” that are optimized for taller frames. Since we commissioned the tooling for these tubes, they are available exclusively from Compass Cycles.


To complement the excellent Kaisei tubes, we developed a selection of framebuilding parts. They are made by Longshen in Taiwan to the highest specifications. The new Compass fork crown is a perfect fit for the Kaisei TOEI Special fork blades that we use on all our bikes. The new fork crown combines classic looks with a modern box section construction. The result is an ultralight and super strong fork crown.

The Compass bottom bracket shell is specifically designed for wide tires. The chainstay sockets angle outward a bit more (10°) to accommodate curved chainstays. This provides extra tire clearance. It’s the secret for using wide tires with road cranks. Designed for standard-diameter tubes and with enough material to carve and match your preferred lug shape, the Compass bottom bracket shell combines light weight with versatility.
These are just a few elements of our new frame tubing program. Instead of lamenting the demise of a major supplier of steel frame tubing, we worked on a replacement that is arguably even better. Now it’s easier than ever before to have your dream bike made!
Click here for detailed specs of the tubes, as well as our complete program of braze-ons and other framebuilding parts.
Photo credit: Paul Keller (Photo 4).

Continue Reading

Why We Choose Steel Bikes


At Bicycle Quarterly, we’ve been testing quite a few titanium and carbon bikes lately, and even a bike made from bamboo. We really liked most of these bikes. And yet our own bikes continue to be made from steel. Why don’t we ride carbon or titanium (or bamboo) bikes?

We choose steel because this material allows us to build custom bikes that are dialed in to the nth degree. High-end steel bikes have benefited from decades of research and development. They now offer a performance that is difficult to equal with other materials. With performance, I don’t just mean speed – although the best steel bikes have no trouble keeping up with ti or carbon racers – but also handling, reliability and all-weather, all-road capability.

Steel tubing is available in many diameters and wall thicknesses, so it’s easy to fine-tune the ride quality and performance of our bikes. For example, my Mule (above) – intended for hauling heavier loads – has a stiffer main triangle than my René Herse (second from top), which is intended for speed first and foremost. With steel, it’s relatively easy to fine-tune the bike’s flex characteristics for optimum performance – what we call “planing”.

Steel is easy to shape. That means that it isn’t too difficult to bend the chainstays slightly, so they curve around wide tires. You can indent the stays to create even more clearance. And steel is stiffer for a given volume than all other materials, so slender tubes are sufficient: Steel chainstays need less of that valuable space between tire and cranks.

Steel is easy to machine, which helps when making dropouts, braze-ons and other parts. Pump pegs and braze-ons for centerpull brakes are readily available in steel. Making those parts out of titanium isn’t as easy as it sounds.

What about the weight and performance of the frame itself? Titanium, steel and aluminum all have the same stiffness-to-weight ratio. Titanium weighs half as much as steel and is half as stiff. For aluminum, it’s 1/3.
If you made frames from each material, with the same tubing diameters and the same stiffness, you’d get three frames that weigh the same. The titanium tubes would have walls that are twice as thick, the walls of the aluminum tubes would be three times as thick.
In the real world, titanium frames tend to be lighter than steel. They use larger-diameter tubes with thinner walls, which require less material to obtain the same stiffness. However, you can make the walls of a frame tube only so thin before the tube risks buckling, denting or cracking. That is the limit with steel – remember that for the same stiffness, a steel tube’s walls will be only half as thick as those of a titanium tube. If you wanted to make a steel frame that is as light as the best titanium frames, the tubing walls would get too thin. So you keep the tube diameter smaller, with the result that the frame weighs a little more.
The weight advantage of titanium frames is smaller than you might expect. Remember that the frame makes up only 20% of a bike’s weight. And once you factor in the rider’s weight, the weight advantage of a titanium bike practically disappears.

Carbon can be even lighter and stiffer. The down side of most carbon frames is that they are made in molds. If you want to change something, you have to make a new mold. That makes it almost impossible to fine-tune the ride characteristics to your preferences. Carbon also works best in uninterrupted shapes. That means it’s not so easy to install braze-ons for racks and other parts that feed significant point loads into the frame or fork. Carbon also tends to be more fragile. Where a metal tube may at worst dent in a fall, carbon often cracks.

For forks, steel and carbon are the only materials that are commonly used today. Most carbon forks are made in molds, so if you want a different geometry, you need a new (and expensive) mold. None of the carbon forks available today have enough offset for a low-trail bike. With steel, you just rake the fork blades a little further. That is why my titanium bike has a steel fork – I wanted to get a geometry optimized for wide tires. Every time I carve into a turn during a steep, twisty descent, I am glad about the precise handling this allows.
Steel also has a longer fatigue life than carbon, which means you can make smaller-diameter fork blades that flex and absorb shocks. If a carbon fork flexed as much as our Kaisei “TOEI Special” fork blades (above), the carbon layers soon would delaminate, and the fork would fail. To be durable, carbon forks have to be relatively stiff. That transmits more shocks to the handlebars, making the bike less pleasant to ride on rough roads.

What about the performance of a steel bike? We’ve tested our steel bikes against the best titanium and carbon bikes. We expected the steel bikes to be a little slower, but we were surprised: The best bikes’ performances were indistinguishable. (And quite a few titanium and carbon bikes actually were slower, because their flex characteristics didn’t work as well with our pedal strokes.)
One carbon bike was a tiny bit faster up a steep hill, because it was lighter. Once we equalized the weights of the bikes, their performance was the same. The extra weight of our bikes came mostly from the fenders, lights and rack. The frame tubes themselves don’t actually weigh that much. We added two full water bottles to the carbon bike, and it was as heavy as the steel bikes.
We aren’t the only ones who’ve rediscovered steel. I was surprised when I recently heard about Global Cycling Network’s new “dream bike”. The frame is made from steel, and they absolutely love it. Click on the video below to watch their first ride on the steel machine.

It’s important to remember that these steel bikes are true high-performance machines. They have little in common with most production steel bikes available today, which are mid-priced bikes that make little pretense to performance. Made from sturdy tubing, these bikes often are very stiff and don’t exhibit the “lively” feel that makes the best bikes perform so well.
Great bikes can be made from many materials. My titanium Firefly and my steel René Herse both feel remarkably similar in how they respond to my pedal strokes – and both are worlds apart from most steel production bikes.

The bikes we love and ride are handbuilt from ultra-thinwall tubing in carefully selected diameters and wall thicknesses. They incorporate things like dropouts with built-in connectors for the generator lighting. Their racks are custom-built for ultimate strength, stiffness and light weight. Their cranks have low tread (Q factor) for optimum pedaling efficiency, yet we can run wide tires. There is a lot that goes into making a great bike. When it comes to our most challenging adventures, we usually choose our steel bikes, because they are no-compromise machines designed to perform under all conditions that we may encounter on the “road”.
This isn’t to say that the other materials cannot be used to make great bikes. Some day, somebody will make a fully integrated “real-world” bike from titanium or carbon, maybe even bamboo. It’ll match the performance of our steel bikes, but it won’t do anything significantly better. It’ll be cool because it’s different. If it’s made from titanium, it won’t dent as easily as our steel bikes. If it’s made from carbon, you can bring an extra water bottle without a weight penalty. Such a bike will probably cost significantly more than our steel bikes (which aren’t cheap by any means!). I really look forward to riding that bike when it becomes available, but I doubt it’ll start a revolution that makes our steel bikes obsolete.

The biggest problem with steel bikes is that the truly great ones aren’t easily available. You have to order one from a custom builder. That is a bit more difficult than going to a bike shop and picking up a bike. But for us, it’s worth the effort, because a custom bike offers things you cannot get with a production bike. Your bike will be exactly as you want it – with features that no production bike offers. And since you are buying it directly from the maker, it’s surprisingly affordable for something that is truly handcrafted to the highest specifications.

Compass offers custom builders a variety of framebuilding parts, like fork crowns, braze-ons, and – soon – a bottom bracket shell specially designed for wide tires (prototypes shown above). We are also adding high-quality frame tubing to our selection. Fewer makers offer frame tubing for bicycles these days, because demand for steel bikes is not as high as it once was.
One place where steel bicycles are still made in large numbers is Japan. Japan’s more than 2000 Keirin racers ride steel bikes, and that creates a significant demand. Many of these bikes are made from Kaisei tubing, which is chosen for its excellent quality. Keirin racers are not allowed to change bikes during a weekend of racing. If their frame breaks, they are out of the races. And since they live off prize and starting money, that is something to be avoided at all costs. So everything about their bikes has to be absolutely top quality.

In the past, Kaisei tubing was difficult to get outside Japan, and the tube lengths were optimized for smaller frames built for Japanese racers (who tend to be less tall than many westerners.) That is why you may never have heard of Kaisei despite its excellent track record. My Urban Bike (above) is made from Kaisei tubing, and it’s held up great over a decade of really hard service.

Starting this summer, Compass Cycles will distribute Kaisei tubing. When we visited their factory (above their tube butting machine), we were really impressed with the quality of their tubing. We have worked with Kaisei to offer tubes with longer unbutted center sections that are designed for larger frames, in addition to their existing tubes. We will offer a large selection of Kaisei tubing in standard and oversize diameters, with ultra-thin walls (0.7-0.4-0.7 mm) that we use on our own steel bikes.

We’ve found that when you want the very best performance in every way, a custom steel bike is hard to beat. Our goal is to provide what your builder needs to make one of these exceptional bikes for you!
Click here to find out more about Compass framebuilding supplies.

Continue Reading

René Herse Rear Cable Hanger

RH_hanger
Compass Cycles is re-introducing the René Herse rear cable hanger. I have loved these simple, lightweight, elegant cable hangers – so much that I made my own when I built my Mule. There are many ways to design a rear cable stop for centerpull and cantilever brakes – this is the one I like best.
The hanger is held by the seatpost binder bolt – just make sure your slot is at least 2.5 mm thick. This is a much better solution than a cable hanger that uses a seatstay bridge (or even worse, a single post): Since the René Herse hanger is loaded in tension rather than torsion, it can be lighter, and yet it will flex less. That results in a more positive braking action, removing some of the springiness that you often feel in rear brakes.
There are other cable hangers that attach to the seatpost binder, but none are as small and light as the Compass René Herse model, which weighs just 3 grams.
de-insulated
The secret is simple: Instead of making the hanger large enough to hold the cable housing and a superfluous ferrule, the Compass René Herse hanger is sized to fit the housing without the plastic covering. Stripping the plastic covering (and deleting the extra ferrule) gives you a metal-on-metal connection that also reduces the flex between housing and hanger – again improving the braking action. It’s not rocket science, but it’s a better, more elegant way of doing this. Of course, to make the René Herse rear cable hangers requires custom-machined parts, which are more expensive than standard ferrules.
Cable_hanger
The Compass René Herse rear cable hanger is made by Nitto to our specifications. Hand-brazed from steel, it’s polished to a mirror shine and then chrome-plated for durability and beauty. It’s equipped with a slot to make removing the brake cable easy – useful for Rinko and travel bikes.
cable stop_on_frame
To match the minimalist cable hanger, we also offer cable stop braze-ons in the same size. I’ve often been bothered by the huge cable stops used on most modern bikes – they seem almost as large as the top tube! Even though I intended my Mule to be just a “working bike”, I couldn’t bring myself to using those oversized stops. Instead, I made my own, smaller stops by cutting down derailleur cable stops.
housing_stops
I won’t need to do this in the future, as we now offer these stops. Of course, you can use the René Herse rear cable hanger on many bikes, but if you build a new frame, these braze-ons result in a more elegant, lighter and more functional setup. More functional? Less flex because there is no ferrule and no outer lining of the housing.
housing_guide_arrow


At the front, where the brake cable housing turns with the handlebars, we recommend using a guide (arrow) to prevent the housing from getting kinked at the exit of the stop. This is a good idea no matter what type of cable stop you use. It’s just a short piece of tubing. On this bike, it’s been slotted to allow removing the brake cables when the bike is disassembled for Rinko.
Click here for more info on the René Herse cable hangers and housing stops.
The René Herse® name, logo and designs are registered trademarks of Compass Cycles.

Continue Reading

Rack Eyelets and Frame Alignment Gauges

rack_w_tabs
It’s encouraging to see that handbuilt bicycles have made such a resurgence in recent years. Building a frame by hand is a labor-intensive process, but done right, the result is a bike that rides better and is more versatile than any mass-produced machine. The best bikes today have custom-made racks that are designed to fit the bike, so they do not need sliding adjustments and thus are lighter, stiffer and unlikely to rattle loose.
Making a good rack is a lot of work, especially if you use small tabs to attach the rack to the fork or frame. Compared to tubes or other attachments, the thin tabs put less torque on the bolt, and so the rack is less likely to loosen due to the vibrations of the road. If you file these tabs by hand, you’ll spend about 20 minutes per tab. And the rack shown above has six of them, so that is two hours of filing tabs! (How do I know? I made the tabs for the rack above.)
framebuilding_rack_tabs
To make rack-building a little easier, Compass Bicycles now offers rack tabs. There are two versions:

  • Version 1 (top) is for the ends of rack tubes, so it has a 5 mm hole and a tab at the end that goes into the rack tube.
  • Version 2 (bottom) is intended as a frame braze-on, so it has a 4.2 mm hole that is ready for M5 threading.

The tabs are laser-cut from 2.5 mm-thick steel and dimensioned for 1/4″, 7 mm or 8 mm rack tubing. More details are here.
frame_alignment_tool
Also new are these nifty frame alignment gauges. Developed by Bicycle Quarterly contributors Alex Wetmore and Hahn Rossman, they greatly facilitate checking the alignment of the frame during and after the build process. There are two versions, one for bikes with 130 – 142 mm rear spacing (top), and one for bikes with 120 – 135 mm spacing (bottom). More details are here.
These new products complement our existing range of fork crowns, fork blades, centerpull brake pivots and other framebuilding supplies. Click here for more information about our framebuilding supplies.

Continue Reading

Pivots for Centerpull Brakes


We now have braze-on pivots for centerpull brakes in stock. Small parts like these are easily overlooked. They aren’t exciting, and there is little profit in them. But when you need them, you appreciate them.
Centerpull brakes have seen a resurgence in popularity in recent years. With brazed-on pivots, they are powerful, elegant and light, while offering superior modulation. However, the pivots have been hard to find. They are different from cantilever pivots.
Most builders have resorted to machining them one by one. Mafac used to offer pivots for brazing onto the frame, and later, Dia-Compe offered copies of the Mafac pivots. Mafac is long-gone, but we managed to get Dia-Compe to make us another production run of these pivots.

The pivots are pre-mitered to fit the fork blades and seatstay. On the left is a rear pivot, which is slightly offset from the seatstays. On the right is a front pivot, which fits in the centerline of the fork blades. (Depending on your configuration, they may need additional mitering.)

The pivots have a machined flat on the part where the spring sits. An aluminum plate with a hole for the spring fits onto the pivot and is located by the flat. Some builder prefer to braze a small tube for the end of the spring onto the pivot. For them, we sell the pivots without the backing plate and spring.

The pivots also include new brake return springs. These are needed if you use Weinmann or Dia-Compe brakes. Mafac brakes already have springs that work with brazed-on pivots. Click here for more information on these pivots and our other framebuilding supplies.
Note: These do not work for Paul centerpull brakes, which use standard cantilever pivots.

Continue Reading
